The Entire Flow Chart of Impregnation / Infiltration

Degreasing	Rinsing	Drying	Impregnation	Liquid Removal	CleaningⅠ	Cleaning Ⅱ	Curing / Solidification

Impregnation / Infiltration Process

The workpiece impregnation / infiltration process is divided into three stages: pretreatment, infiltration treatment and post-treatment.

I. Pretreatment

The pretreatment process includes degreasing, cleaning and vacuum drying.

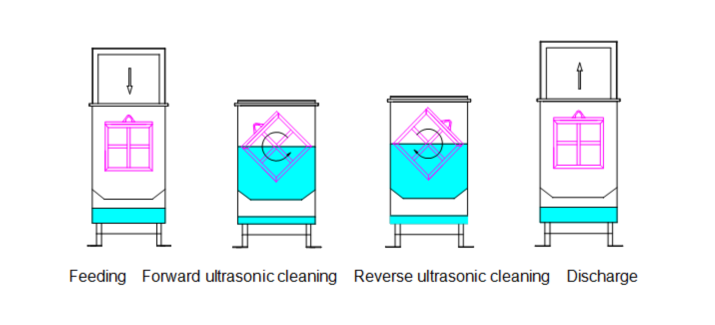

1.1 Ultrasonic degreasing schematic diagram

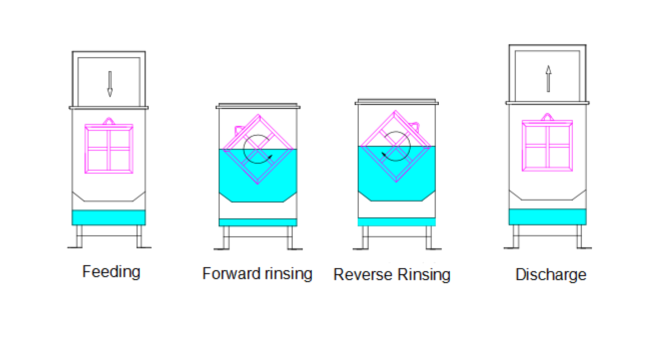

1.2 Schematic diagram of hot water rinsing

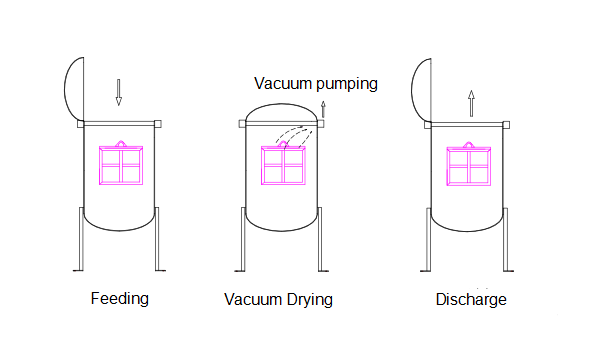

 1.3 Vacuum drying

II. Infiltration Treatment

The infiltration treatment process includes vacuum impregnation, six direction liquid removal, flipping cleaning, flipping curing.

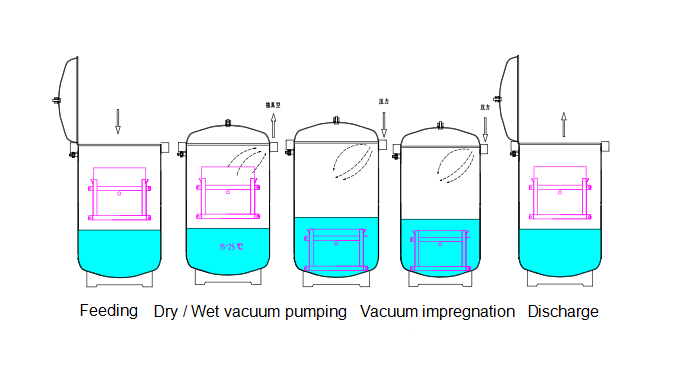

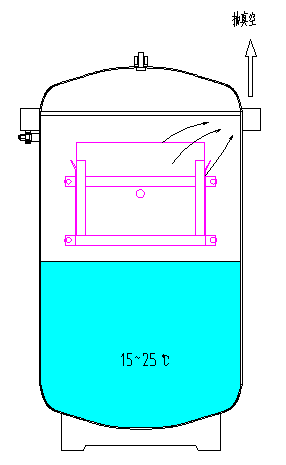

2.1 Vacuum impregnation

2. Six directions liquid removal

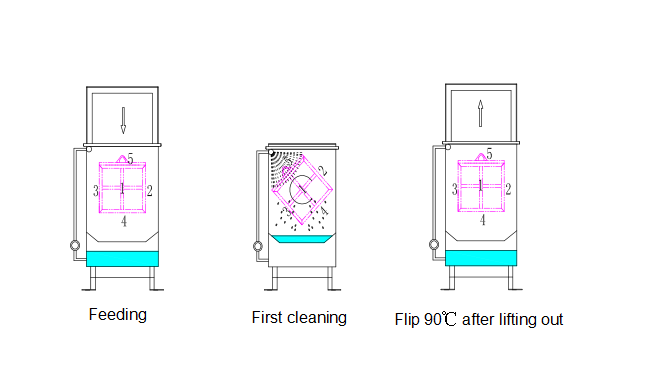

3. Flipping cleaning I

4. Flipping cleaning II

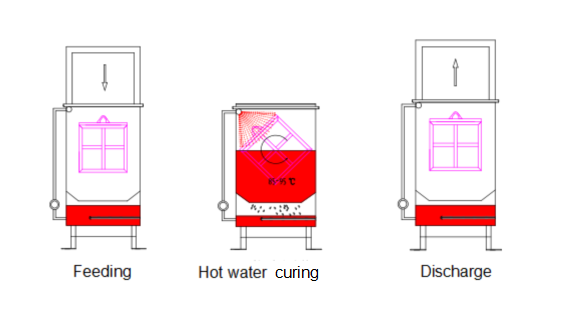

5. Flipping Curing

III. Post Treatment

The workpiece should be pressure tested after impregnation, leaking workpieces can be infiltrated for the second and third time, workpieces still leaking will be treated as scraping parts.

Regarding to detailed impregnation processes, please contact our consultants.
